# 外部 API

了解如何集成和配置外部 API 功能，使角色能够访问实时信息、创建任务并与第三方平台交互。

## 简介

此 **外部 API** 功能可让您的角色智能地与实时数据源和第三方服务交互。无论是获取实时天气更新、追踪体育赛事比分，还是在 Jira 和 Trello 等平台中创建工单，此功能都能实现无缝的 API 集成。只需几个配置步骤，您的角色就能获取数据、触发工作流并执行自动化操作，从而大幅提升能力。

{% embed url="<https://www.youtube.com/watch?v=Ep1yUeu91FE>" %}

在编写方法之前，请先浏览 [外部 API 限制](https://docs.convai.com/api-docs/zh/convai-playground/character-customization/external-api/external-api-limitations.md) —了解支持的模型、Python 运行时、允许使用的库、输入架构以及每个角色的上限。API 参考文档中也链接到了同一页面。

***

## 配置和使用

### 1. 访问外部 API 页面

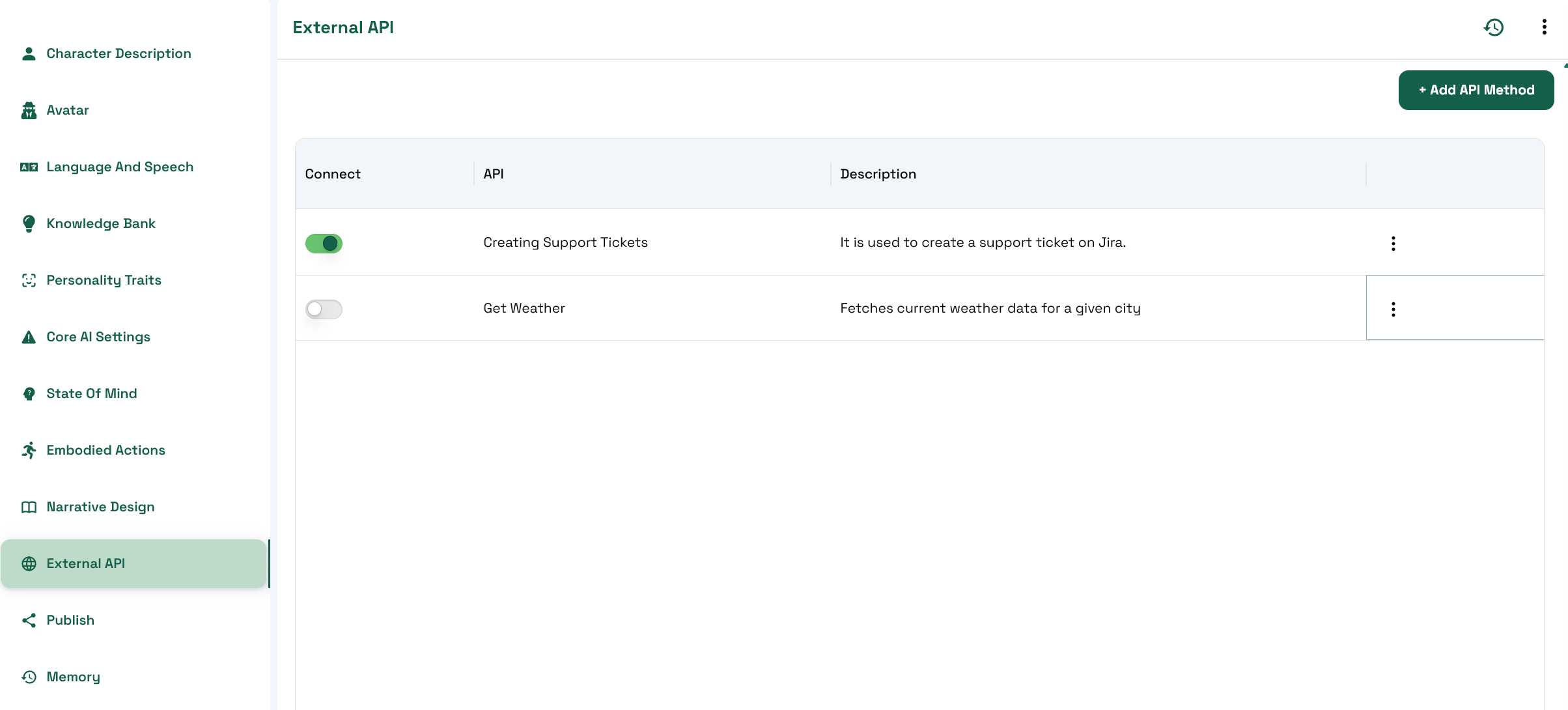

在控制面板中前往 **外部 API** 部分。在这里，您可以查看现有的 API 方法、启用或停用这些方法，以及创建新方法。要添加新的 API 方法，请点击 **添加 API 方法**.

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2FcuDTHJE5qW2Olt7VLQYg%2FScreenshot%202025-08-09%20222338.png?alt=media&amp;token=e356bab4-a518-421d-9be2-9e06fb470405" alt=""><figcaption></figcaption></figure>

***

### 2. 创建 API 方法

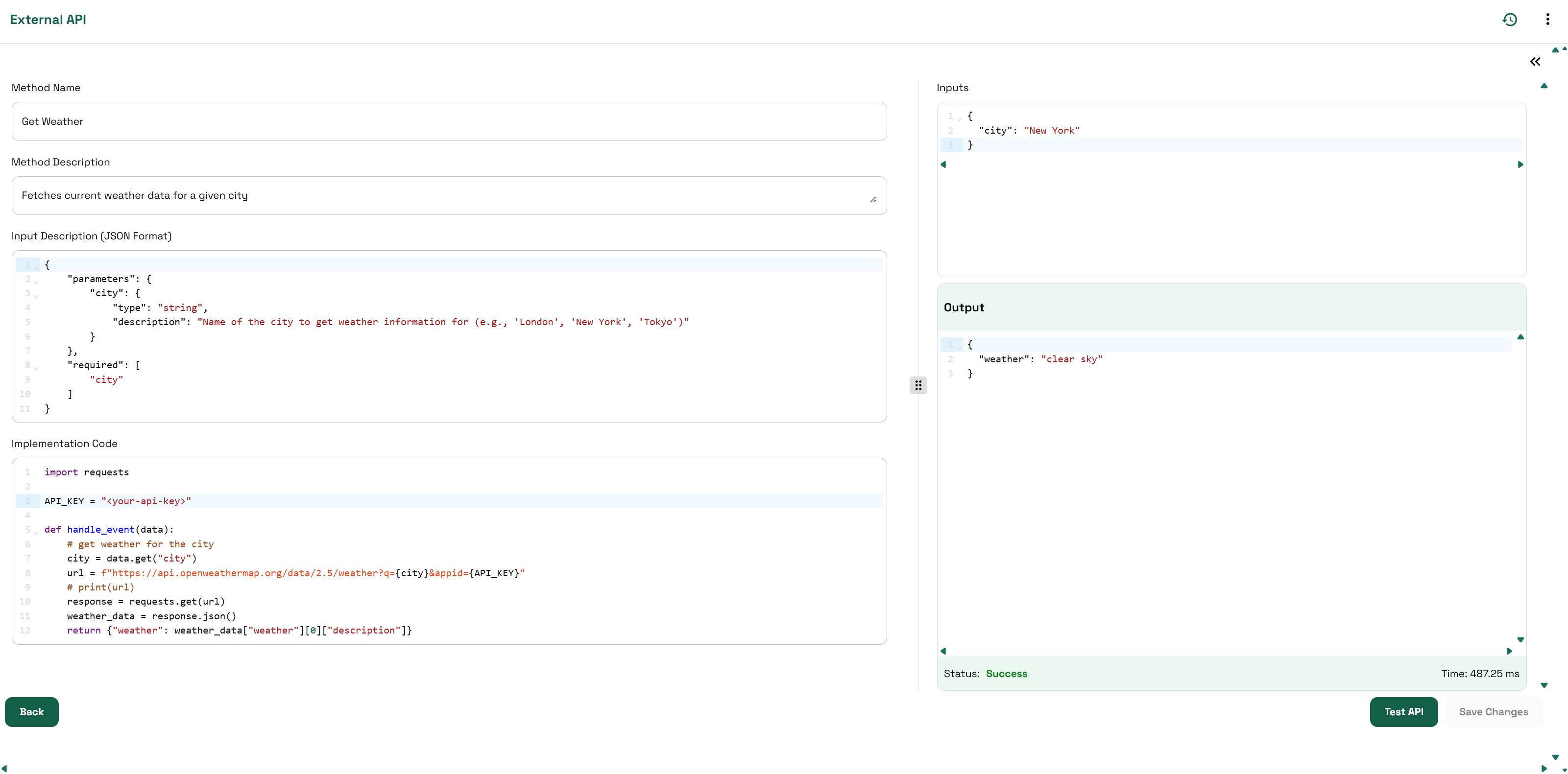

**方法字段概览**

* **方法名称** – 选择现有模板，或为您的方法输入一个唯一名称。
* **方法描述** – 简要说明此方法的功能。
* **输入描述（JSON 格式）** – 定义必需的输入参数及其说明。
* **实现代码** – 编写用于实现 API 逻辑的 Python 代码。
* **输入** – 输入用于验证方法的测试参数。
* **输出** – 点击 **测试 API**.

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2F1B61FhWE2wDzVEelrm9w%2FScreenshot%202025-08-09%20222520.png?alt=media&amp;token=4c256d26-9373-4595-ae6a-f56822ef1d1b" alt=""><figcaption></figcaption></figure>

***

## 示例 1 – 获取天气数据

**方法名称**\
`Get Weather`

**方法描述**\
`Fetches current weather data for a given city`

**输入描述**

```json
{
    "parameters": {
        "city": {
            "type": "string",
            "description": "要获取天气信息的城市名称（例如：'London'、'New York'、'Tokyo'）"
        }
    },
    "required": [
        "city"
    ]
}
```

**实现代码**

```python
import requests

API_KEY = "<your-api-key>"

def handle_event(data):
    city = data.get("city")
    url = f"https://api.openweathermap.org/data/2.5/weather?q={city}&appid={API_KEY}"
    response = requests.get(url)
    weather_data = response.json()
    return {"weather": weather_data["weather"][0]["description"]}
```

**设置说明**

1. 在以下网站注册： [OpenWeatherMap](https://openweathermap.org/) 并获取你的 API 密钥。
2. 替换 `<your-api-key>` 代码中的占位内容为你的密钥。

**测试输入**

```json
{
  "city": "New York"
}
```

点击 **测试 API**.

**成功的输出示例：**

```json
{
  "weather": "clear sky"
}
```

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2F1B61FhWE2wDzVEelrm9w%2FScreenshot%202025-08-09%20222520.png?alt=media&amp;token=4c256d26-9373-4595-ae6a-f56822ef1d1b" alt=""><figcaption></figcaption></figure>

#### **启用该方法**

如果测试通过，请点击 **保存更改**，返回主 API 列表，然后切换 **连接** 使其变为绿色。

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2FeDo9ll7ToGd9hH5RjBWr%2FScreenshot%202025-08-09%20222055.png?alt=media&amp;token=583e69d7-4cf8-49dc-9bc6-84345d12b64d" alt=""><figcaption></figcaption></figure>

#### **与角色进行测试**

启用后，在与角色的对话中测试该方法。\
如下面的屏幕截图所示，该角色正确返回了罗马和兰格尔当前的天气。

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2F3OibIcWvoDDlhgvS19jG%2FScreenshot%202025-08-09%20155243.png?alt=media&amp;token=69d5a27d-d63d-4288-80ac-2a6c056e1d55" alt=""><figcaption></figcaption></figure>

***

## 示例 2 – 创建 Jira 支持工单

**方法名称**\
`创建支持工单`

**方法描述**\
`在 Jira 上创建支持工单`

**输入描述**

```json
{
    "parameters": {
        "summary": {
            "type": "string",
            "description": "Jira 工单的简短标题"
        },
        "description": {
            "type": "string",
            "description": "Jira 问题的详细描述"
        }
    },
    "required": [
        "summary",
        "description"
    ]
}
```

**实现代码**

```python
import requests
from requests.auth import HTTPBasicAuth
import json

# Jira 配置
JIRA_DOMAIN = "mycompany.atlassian.net"  # 替换为你的 Jira 域名
EMAIL = "user@example.com"               # 替换为你的 Atlassian 账户邮箱
API_TOKEN = "abc123xyz456..."            # 替换为你的 Jira API 令牌
JIRA_PROJECT_KEY = "EX"                  # 替换为你的 Jira 项目键
ISSUE_TYPE = "Story"                     # 问题类型：Story、Task 或 Bug

API_ENDPOINT = f"https://{JIRA_DOMAIN}/rest/api/3/issue"

# JIRA 所需的标准标头。
headers = {"Accept": "application/json", "Content-Type": "application/json"}

def create_jira_ticket(ticket_data):
    """
    使用提供的 ticket_data 字典创建 JIRA 工单。

    预期的 ticket_data 键：
      - summary: (str) 问题的简要摘要。
      - description: (str) 问题的详细描述。

    返回：
      - 成功创建工单时返回 JSON 响应。
      - 发生错误时返回错误消息。
    """
    # 将纯文本描述转换为 Atlassian 文档格式
    description_adf = {
        "version": 1,
        "type": "doc",
        "content": [
            {
                "type": "paragraph",
                "content": [
                    {"type": "text", "text": ticket_data.get("description", "")}
                ],
            }
        ],
    }

    # 为 JIRA 问题构造请求负载
    payload = {
        "fields": {
            "project": {"key": JIRA_PROJECT_KEY},
            "summary": ticket_data.get("summary"),
            "description": description_adf,
            "issuetype": {"name": ISSUE_TYPE},
        }
    }

    # 将请求负载转换为 JSON 字符串
    payload_json = json.dumps(payload)

    # 向 JIRA API 端点发送 POST 请求
    response = requests.post(
        API_ENDPOINT,
        data=payload_json,
        headers=headers,
        auth=HTTPBasicAuth(EMAIL, API_TOKEN),
    )

    # 检查是否成功创建（HTTP 201 Created）
    if response.status_code == 201:
        return response.json()
    else:
        return {"error": f"Failed to create ticket: {response.status_code}"}


def handle_event(data):
    return create_jira_ticket(data)
```

**在哪里查找所需值**

* **JIRA\_DOMAIN** – 可在 Jira 账户 URL 中找到。例如：\
  `https://mycompany.atlassian.net` → `JIRA_DOMAIN = "mycompany.atlassian.net"`
* **EMAIL** – Atlassian 登录邮箱。
* **API\_TOKEN** – 在此处创建： [Atlassian API 令牌](https://id.atlassian.com/manage-profile/security/api-tokens).
* **JIRA\_PROJECT\_KEY** – 可在项目 URL 中找到，或查看项目名称旁的信息。
* **ISSUE\_TYPE** – 必须是 Jira 项目中有效的问题类型（Story、Task、Bug）。

**测试输入**

```json
{
  "summary": "This is to test ticket creation",
  "description": "Created using External API"
}
```

点击 **测试 API**.

**成功的输出示例：**

```json
{
  "id": "10004",
  "key": "EX-5",
  "self": "https://mycompany.atlassian.net/rest/api/3/issue/10004"
}
```

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2FFFQFn3xKRpZU1dmqvlTw%2Fimage.png?alt=media&amp;token=4eb9086a-ff07-496c-90b2-8b5857d7f26e" alt=""><figcaption></figcaption></figure>

**启用该方法**\
如果测试通过，请点击 **保存更改**，返回主 API 列表，然后切换 **连接** ，使其变为绿色以启用该方法。

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2FIchI8ffgB2yv5oF2XkXc%2FScreenshot%202025-08-09%20164455.png?alt=media&amp;token=ac07c7b5-0d68-4170-83a4-c14bcba0c03d" alt=""><figcaption></figcaption></figure>

**使用角色进行测试**\
激活后，请在与角色的对话中测试此方法。\
如下方截图所示，该角色成功创建了一个 Jira 工单，并返回了工单密钥。

<figure><img src="https://2402152281-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEtUJA212Zc1S9ACc8T4l%2Fuploads%2FThTEgrGnh2fHdyzAUmWe%2FScreenshot%202025-08-09%20164924.png?alt=media&amp;token=9467982f-3d96-4619-b029-6b4c38c6e76d" alt=""><figcaption></figcaption></figure>

***

## 限制与支持的环境

{% hint style="warning" %}
**支持的 LLM 模型**: GPT-4o、GPT-4o-mini、Claude-3.5、Claude 4.0
{% endhint %}

{% hint style="warning" %}
**最长执行时间**: 5 秒
{% endhint %}

{% hint style="warning" %}
**Python 版本**: 3.11
{% endhint %}

{% hint style="warning" %}
**可用的库**: 标准库 + requests
{% endhint %}

***

## 总结

通过配置 External API 功能，您可以将角色转变为强大的数据驱动型助手。无论是获取实时天气信息，还是直接在对话中创建 Jira 工单，可实现的功能都非常丰富。这种集成能力可支持高度交互、自动化且智能的工作流。


---
