Configure the API key

Enter and validate your Convai API key for local development in the Unity Editor so a Convai character can authenticate while you build a scene.

The Convai SDK for Unity's API Key authentication mode reads an API key tied to your Convai account directly from the project's saved settings. Use this page to enter that key for local development in the Unity Editor — iterating on a scene, running sample scenes, or testing on a machine only you control.

API Key mode is for local development, not for a build you distribute. A player build produced in API Key mode contains your account API key, obfuscated but not encrypted, inside the shipped ConvaiSettings asset. Before you build anything you plan to ship, read Authentication and switch to Auth Token mode.

1

Copy your API key

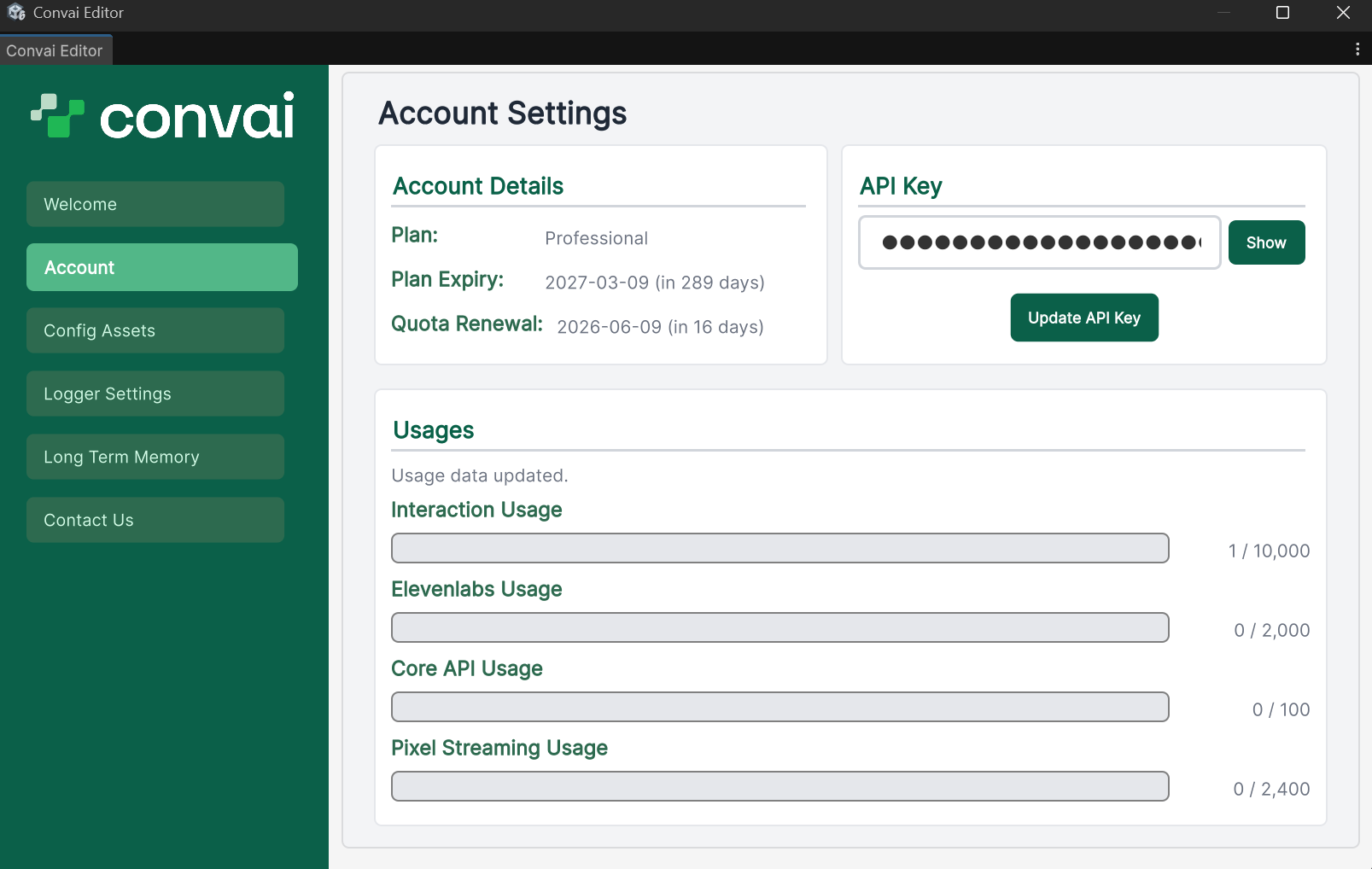

Log in to your Convai dashboard, navigate to Account Settings, and copy your API key.

2

Open the Credentials section

In the Unity Editor menu bar, open Convai > Settings (or Edit > Project Settings > Convai SDK), then select the Credentials section. Leave Auth Mode set to API Key, its default.

3

Paste and validate the API key

Paste your API key into the API Key field, then select Validate & Save. Convai checks the key and, if it accepts the key, the SDK saves it to the project.

The status badge next to the button reports the result: Key valid when Convai accepts the key, or an error message such as Key invalid when it does not.

4

Verify the key is accepted

Run GameObject > Convai > Validate Scene Setup. A missing API key appears as a warning in the validator dialog. If no API key warning appears, your key is configured correctly.

How the key is used at runtime

The SDK reads the key from ConvaiSettings via the ICredentialProvider interface before initiating any connection to Convai. You do not need to pass the key manually in code — the SDK resolves it automatically on startup.

Assets/Resources/ConvaiSettings.asset stores the key obfuscated (XOR plus Base64), not encrypted — anyone with the SDK source can reverse it. Decide whether to commit this file to source control based on your team's security policy. If the project previously stored the key in plain text, the SDK migrates it to the obfuscated format automatically the first time the Unity Editor loads.

Move to Auth Token mode before you ship

API Key mode has no equivalent of a server-issued, short-lived credential — the same account key that unlocks your Convai project sits in the build. For any build distributed to testers, players, or end users, switch to Auth Token mode instead, where a build processor strips the account key before the build and a server you control issues short-lived tokens at connect time.

AuthenticationCustom credential provider

Next steps

With your API key in place, import a sample scene to verify the SDK is working before you build your own scene.

Import and run sample scenes
