Narrative design quick start

Add a Narrative Design Manager and a collision trigger to a Convai character and confirm a section change in Play Mode — no code required.

This guide walks you through the fastest path to a working Narrative Design setup. By the end, a character reacts to a section change when the player walks through a trigger zone — entirely through the Inspector, no code required.

Prerequisites

Before starting, verify:

• A ConvaiCharacter is in the scene with its Character ID set in the Inspector
• At least one section and one trigger are defined for that character on the Convai dashboard

Set up the manager and a trigger

1

Add the Narrative Design Manager

Select the GameObject that has your ConvaiCharacter component. In the Inspector, click Add Component and search for Narrative Design Manager (path: Convai > Narrative Design Manager).

The Manager auto-detects the ConvaiCharacter on the same GameObject. If your character is on a different GameObject, drag it into the Character field.

ConvaiNarrativeDesignManager on the character's GameObject.

2

Sync sections from the dashboard

In the Manager's Inspector, click Sync with Backend. The SDK fetches your narrative sections and populates the Narrative Sections list. Each entry shows the section's name from the dashboard.

If the list stays empty, confirm that the character ID is set on ConvaiCharacter and that your API key is valid — see Configure the API key. The Last Fetch Error field shows the specific error if something went wrong.

Narrative Sections list after a successful sync.

3

Wire a section event

Expand the first section entry in the Narrative Sections list. You will see two Unity Events: On Section Start and On Section End.

Click + on On Section Start, drag any GameObject into the object field, and choose a method to call. The easiest option for testing is the NarrativeDesignDebugLogger helper below — add it to any GameObject, drag that GameObject into the listener field, and select NarrativeDesignDebugLogger.LogSectionStarted.

NarrativeDesignDebugLogger.cs

using UnityEngine;

public class NarrativeDesignDebugLogger : MonoBehaviour
{
    [SerializeField] private string _label = "Section";

    /// Wire to a UnitySectionEventConfig.OnSectionStart Unity Event.
    public void LogSectionStarted()
    {
        Debug.Log($"[NarrativeDesign] {_label} started.", this);
    }

    /// Wire to ConvaiNarrativeDesignManager.OnAnySectionChanged Unity Event.
    /// Receives the new section ID as a string.
    public void LogSectionChanged(string sectionId)
    {
        Debug.Log($"[NarrativeDesign] Section changed → {sectionId}", this);
    }
}

On Section Start wired to NarrativeDesignDebugLogger.

4

Add the Narrative Design Trigger

Create a new empty GameObject in your scene and position it where the player will walk. Click Add Component and search for Convai Narrative Design Trigger (path: Convai > Convai Narrative Design Trigger).

Drag your ConvaiCharacter into the Character field, or leave it blank to let Auto Find Character locate it automatically.

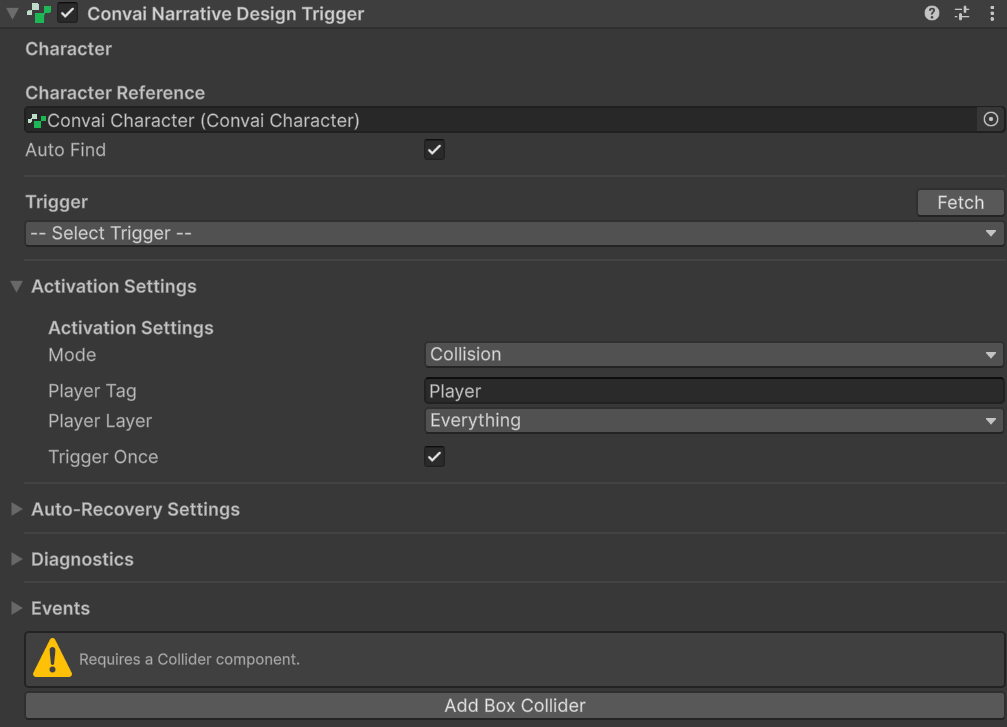

ConvaiNarrativeDesignTrigger on a world-space trigger GameObject.

5

Fetch and select a trigger

In the Trigger component's Inspector, click Fetch to load the named triggers from the dashboard. A dropdown appears — select the trigger that should advance the graph to your first section.

Trigger dropdown populated from the Convai dashboard.

6

Add a collider

The default activation mode is Collision, which uses Unity's OnTriggerEnter. On the same trigger GameObject, click Add Component > Box Collider. In the Box Collider's settings, enable Is Trigger.

Size the collider to cover the zone where you want the trigger to fire. In the Scene view, the green wireframe box shows the detection area.

Box Collider with Is Trigger enabled.

7

Press Play and walk through

Player setup checklist — verify all three before pressing Play:

• Tag: the player GameObject's tag must be set to Player. The Trigger component matches by tag to identify the player.
• Collider: the player must have a Collider component. Without it, OnTriggerEnter will never fire.
• Rigidbody: either the trigger zone or the player must have a Rigidbody. Add it to the player — if you add it to the trigger zone, you must repeat that for every trigger object in the scene.

Missing any of these is the most common reason the trigger appears to do nothing in Play Mode.

Enter Play Mode and move the player through the collider zone.

The section ID appears in the Console when the player enters the zone. The character's next response reflects the new section's objectives.

What the setup produced

Walking through the collider zone activated the full Narrative Design pipeline:

The ConvaiNarrativeDesignTrigger detected the player via OnTriggerEnter and called InvokeTrigger() with the trigger name you selected. The SDK queued the trigger until the character's real-time session was open, then sent a trigger-message over the RTVI connection to Convai. Convai advanced the narrative graph along the matching edge and responded with a behavior-tree-response containing the new section ID. ConvaiNarrativeDesignManager matched that section ID against its local list and fired OnSectionStart on the matching entry.

For a full explanation of this pipeline, see How narrative design works.
